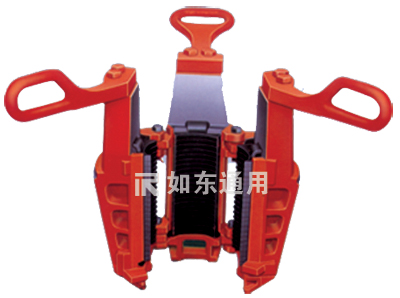

Flake Rotary Slip Type W
Flake Rotary Slips have three segments. They can handle various O.D. drill pipes, drill collars and casings by changing inserts gripping dies or insert bowls. There are two types of this slip: W3.1/2-5/100 and W5-7/100.
|
Model |
W31/2-5/100 |
|||||||
|
Size of tubulars |
in |
27/8 |
31/2 |
4 |
41/8 |
41/2 |
43/4 |
5 |
|
mm |
73.025 |
88.9 |
101.6 |
104.775 |
114.3 |
120.65 |
127 |
|
|
Max load(kN) |
1000 |
|||||||
|
Model |
W5-7/100 |
|||||||||
|
Size of tubulars |
in |
5 |
51/2 |
59/16 |
53/4 |
61/8 |
61/4 |
61/2 |
65/8 |
7 |
|
mm |
127 |
139.7 |
141.3 |
146.1 |
155.6 |
158.8 |
165.1 |
168.3 |
177.8 |
|
|
Max load(kN) |
1000 |
|||||||||
