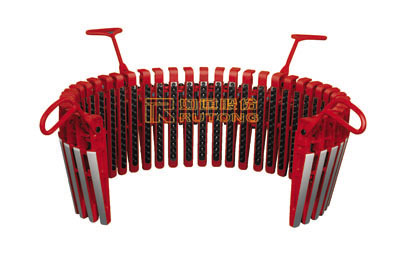

Casing Slip Type CMS

Casing Slips Type CMS can accommodate casings from 4.1/2 to

30in (114.3 to 762mm). They are designed and manufactured according to API Spec 7K.

Casing OD	in	4¹/₂-5	5¹/₂-6	6⁵/₈	7	7⁵/₈	8⁵/₈	9⁵/₈	10³/₄
Casing OD	mm	114.3-127	139.7-152.4	168.3	177.8	193.7	219.1	244.5	273.1
Weight	kg	76	71	89	83.5	75	82	87	95
Weight	lb	168	157	196	184	166	181	192	209
Total No. of segments		9	9	12	12	12	13	14	15
Use in insert bowl No.		API or No.3						No.2
Casing OD	in	11³/₄	13³/₈	16	18⁵/₈	20	24	26	30
Casing OD	mm	298.5	339.7	406.4	473.1	508	609.6	660.4	762
Weight	kg	118	117	140	166.5	174	201	220	248
Weight	lb	260	258	308	367	383	443	486	546
Total No. of segments		17	18	21	25	26	30	33	37
Use in insert bowl No.		No.1		Match with relevant casing bushing
